Lima Six Belt Fed BUILD KIT

This is a BUILD KIT only, and requires additional parts to be added and must be assembled by the user.

See the end of this product description for a complete list of what’s included and what parts must be added. Videos and technical information are available on our discussion forum. Assembly requires basic AR15 gunsmithing tools and a drill.

The LIMA SIX WILL NOT FUNCTION with a standard AR15 buffer setup. For more information about buffers, click here:

https://limasix.com/product/buffer-upgrade-kit-for-lima-six/

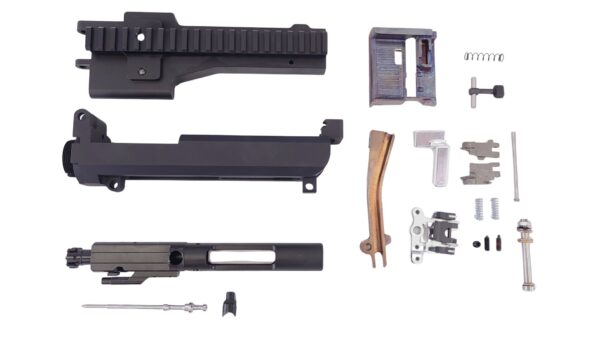

Build Kit Includes:

• Upper Receiver
• Top Cover
• Feed Tray
• Feed Lever
• Complete Bolt Carrier Group
• Feed Stud
• Feed Pawl Assembly
• Front & Rear Cartridge Guides
• Cartridge Guide Springs and Pin
• Top Cover Latch Assembly
• Top Cover Hinge Hardware
• Feed Tray Retainer
• Top Cover Set Screw (nylon tipped)
• Modified Bolt Catch
• Buffer Spacer
• Recoil Spring
• Your choice of:
  • Barrel Drilling Service
  • DIY Barrel Drilling Jig Kit

Parts you must add to complete:

• Barrel
• Handguard (Please see list of compatible handguards)
• Gas Tube
• Gas Block
• Choose ONE of the following:
• Buffer upgrade kit, available here: https://limasix.com/product/buffer-upgrade-kit-for-lima-six/
• An AR10-style buffer (short, 2.5″), H2 minimum weight (semi auto ONLY)

Specifications

• 5.56X45mm NATO
• 7075-T6 Upper Receiver and Top Cover, Type III Hardcoat Anodized
• Billet Machined Hardened 17-4PH Feed Tray
• K-Spec bolt with Dual Ejectors
• 8620 Bolt Carrier, Full Auto Cut
• Tool Steel Belt Feed Components
• Billet Machined Aluminum Charging Handle

ALL ORDERS ARE BACKORDERED 2 TO 4 WEEK LEAD TIME.

TO ENSURE YOUR ORDER ARRIVES SAFELY, LIMA SIX UPPERS AND BUILD KITS WILL SHIP VIA UPS FULLY INSURED.

IF YOU HAVE ANY QUESTIONS PLEASE FEEL FREE TO CONACT US.
